GPS Logger GFTB920 GFTB920 [GFTB920]

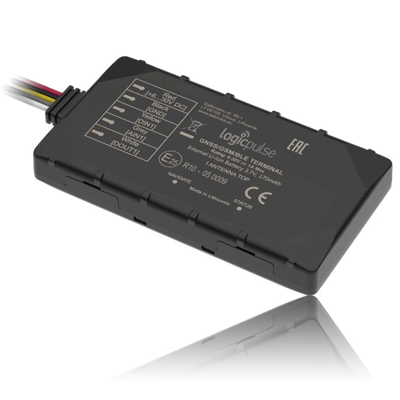

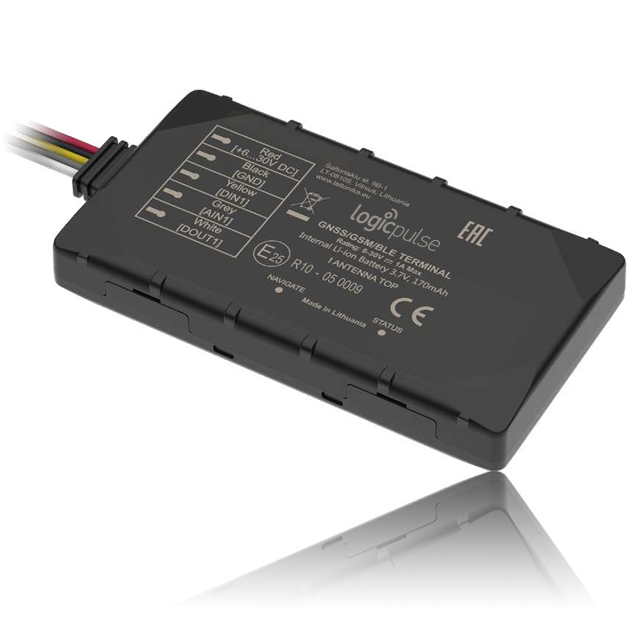

The GFMB920 device is a compact and intelligent locator with Bluetooth connectivity, high-performance internal GNSS and GSM antennas and integrated battery. The GFMB920 is best suited for vehicles such as trucks, light vehicles, agricultural machines, construction machines, etc. The GFMB960 has the digital input on which it can be used to control the ignition status, door or alarm button. Remote immobilization of the vehicle can be achieved using the digital output of the GFMB920.

SKU: GFTB920

Call for pricing

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: Channel 33
Monitoring Sensitivity: -165 dBM
Accuracy:
Hot Start: <1s
Warm Start: <25s
Cold Start: <35s

COMMUNICATIONS

Technology: GSM
2G bands: Quad-band 850/900/1800/1900 MHz
Data transfer: GPRS 12 Multi-Slot Class (up to 240 kbps), Mobile GPRS Class B
Data support: SMS (text / data)

POWER SUPPLY

Input voltage range: 6 - 30 V DC with surge protection
Backup Battery: 170 mAh ion battery (0.63 Wh

BLUETOOTH

Specification : 4.0 + LE
Supported peripherals : Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, niversal BLE sensors support

INTERFACE

Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: High Internal Performance
GSN antenna: High internal performance
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro SIM
Accuracy: <3m
Memory: 128MB of internal ﬂash memory

BOX

Dimensions : 79 x 43 x 12 mm (L x W x H)
Weight : 54 gr

OPERATIONAL ENVIRONMENT

Operating temperature : -40°C a +85°C
Operating humidity: 5% a 95% non-condensing
Index of Protection: IP54
Battery charging temperature: 0°C a +45°C
Battery discharge temperature: -20°C a +60°C
Battery storage temperature: -20°C a +45°C

OTHER FEATURES

Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Slee
SMS: Configuration, Events, DOUT control, Debug
GPRS Commands: Configuration, DOUT control, Debug
Time synchronization: GPS, NITZ, NTP
Fuel monitoring: LLS (analog), ODBII dongleI
Ignition detection: Digital input 1, accelerometer, external supply voltage, engine rotation (OBDII dongle)
Configuration/ Update: Firmaware configuration and update via fleet.track Portal and configurator (USB, Bluetooth)

CERTIFICATIONS

Regulatory: CE / VERMELHO, E-Mark, EAC, RoHS, MTBF, ALCANCE

Overview
Software
Downloads
Contact Us

GNSS

GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver: Channel 33
Monitoring Sensitivity: -165 dBM
Accuracy:
Hot Start: <1s
Warm Start: <25s
Cold Start: <35s

COMMUNICATIONS

Technology: GSM
2G bands: Quad-band 850/900/1800/1900 MHz
Data transfer: GPRS 12 Multi-Slot Class (up to 240 kbps), Mobile GPRS Class B
Data support: SMS (text / data)

POWER SUPPLY

Input voltage range: 6 - 30 V DC with surge protection
Backup Battery: 170 mAh ion battery (0.63 Wh

BLUETOOTH

Specification : 4.0 + LE
Supported peripherals : Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, niversal BLE sensors support

INTERFACE

Digital Inputs: 1
Digital Outputs: 1
Analog Inputs: 1
GNSS antenna: High Internal Performance
GSN antenna: High internal performance
USB: 2.0 Micro-USB
LED indication: 2 status LED lights
SIM: Micro SIM
Accuracy: <3m
Memory: 128MB of internal ﬂash memory

BOX

Dimensions : 79 x 43 x 12 mm (L x W x H)
Weight : 54 gr

OPERATIONAL ENVIRONMENT

Operating temperature : -40°C a +85°C
Operating humidity: 5% a 95% non-condensing
Index of Protection: IP54
Battery charging temperature: 0°C a +45°C
Battery discharge temperature: -20°C a +60°C
Battery storage temperature: -20°C a +45°C

OTHER FEATURES

Sensors: Accelerometer
Scenarios: Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes: GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Slee
SMS: Configuration, Events, DOUT control, Debug
GPRS Commands: Configuration, DOUT control, Debug
Time synchronization: GPS, NITZ, NTP
Fuel monitoring: LLS (analog), ODBII dongleI
Ignition detection: Digital input 1, accelerometer, external supply voltage, engine rotation (OBDII dongle)
Configuration/ Update: Firmaware configuration and update via fleet.track Portal and configurator (USB, Bluetooth)

CERTIFICATIONS

Regulatory: CE / VERMELHO, E-Mark, EAC, RoHS, MTBF, ALCANCE

fleet.track is an online fleet management platform for vehicles/assets, allowing the monitoring of vehicles/assets by their owners or authorised third parties and thus making it possible to analyse and control distances travelled, driving styles, related costs, among many other evaluation factors in fleet management.

Visit the solution website at https://fleet.track.pt

Features:

Real-time Tracking
Monitoring the location of your vehicles/assets (vehicles, people, phones, bicycles, etc.) online and in real time.
Possibility of choosing several types of maps.
Viewing additional information about tracking vehicles/assets, including speed, address, fuel consumption, trip history, etc.

Notifications
Possibility of receiving instant alerts about tracked vehicles/assets.
Know when the vehicle/asset enters or leaves a geographic zone.
Check whether the vehicle/asset is speeding.
Receive SOS alarms if the vehicle/asset has been stolen, with the possibility to easily switch the engine on or off.
Receive notifications through the fleet.track platform, by email or SMS (optional).

History and Reports
Reports in different formats: XLS, PDF, CSV, TXT.
Reports with various information by date and the GPS tracker name, including driving hours, stops, distance travelled, fuel consumption, and much more.
Possibility of generating detailed reports by groups of vehicles/assets.

Fuel Savings
Easily check fuel level and fuel consumption from the tank along the route in real time.
Check for aggressive driving — rapid acceleration, speed and braking — which can directly influence fuel consumption.
Improving driving behavior can significantly reduce fuel costs (from 5% to 15%). Additionally, monitoring fuel consumption is an excellent preventive measure against fraud.

Geofencing
The Geofencing feature allows you to configure geographic boundaries around areas of specific interest to the user.
Receive automatic alerts when the vehicle/asset enters or leaves the marked boundaries.

POI and Tools
Possibility of downloading the GPS tracking app and turning a mobile phone into a GPS tracker, allowing online and real-time monitoring.

Mobile Devices
Possibility of downloading the GPS tracking app and turning a mobile phone into a GPS tracker, allowing online and real-time monitoring.
fleet.track mobile client application with all software features on the smartphone.
Android and iOS applications published on Google Play and the App Store, always updated.
